Main Characteristics

 Be controlled by PLC and DCS controlling system
 With continuous production process, which can customize the length as customers' demands

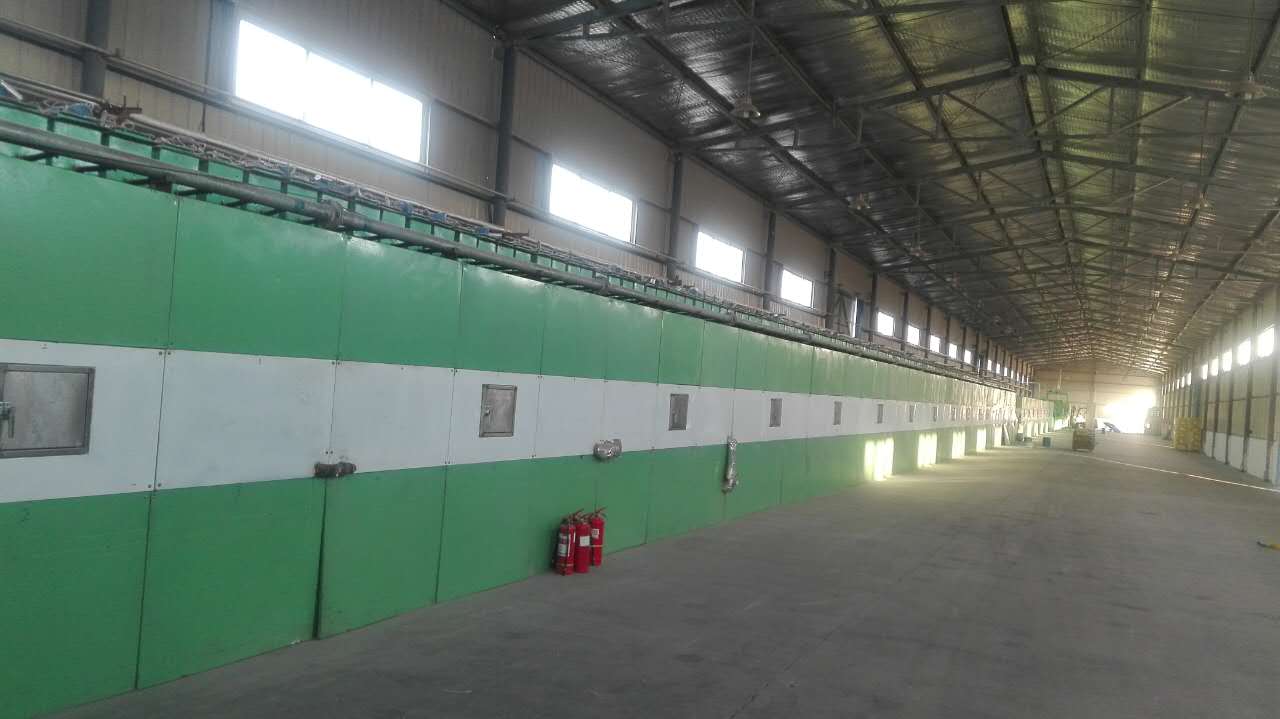

 With microwave oven drying technics to ensure the even dry process
 Produce the vacuum two sides polished ceramic fiber board
 With annual capacity of 3000 T

Specifications of Ceramic Fiber Board Produced by the Equipment

 Two-sides polished ceramic fiber board
 Temperature range: 1050℃, 1260℃, 1360℃ and 1430℃
 Thickness range: from 10mm to 100mm
 Density range: from 220Kg/m3 to 350Kg/m3

Components

Mechanical Equipment
 Cotton powder system
 Slag-removing and weighing system

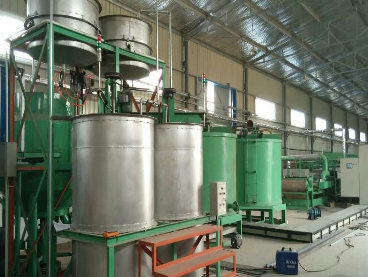

 Fiber liquid making system
 Liquid mixing system
 Shaping and drying system

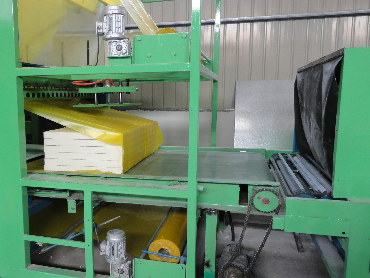

 Polishing and cutting system
Auxiliary Equipment
 Dust catching system
 Compressed air system
 Recycling water treatment system

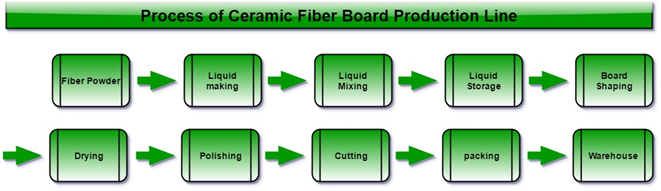

Production Process
