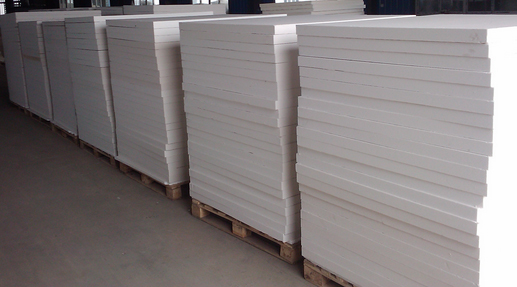

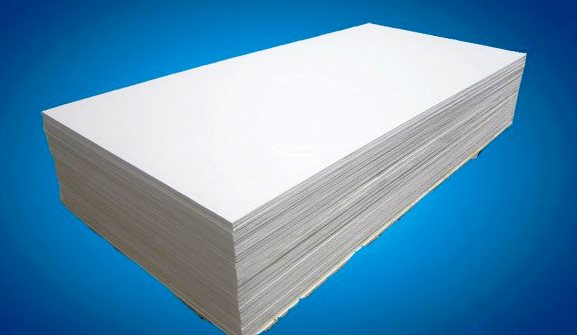

CERAMIC FIBER BOARD
Ceramic Fiber Board is produced through wet forming process. These ceramic fiber boards features include high temperature stability, low thermal conductivity, consistent density, and excellent resistance against thermal shock and chemical attack. Ceramic fiber board also resists oxidation and reduction. Ceramic fiber boards are available in a variety of temperature ratings, densities, thicknesses, widths and lengths, and custom vacuum formed shapes.
Features
High temperature stability Excellent thermal shock resistance Excellent strength, hardness Exceptional machinability for precise dimensional control Low thermal conductivity Low heat storage Resistant to hot gas erosion Resists most chemical attacks Easy to cut, handle, and install Low sound transmission Light weight Resists penetration by molten aluminum and other non-ferrous metals Asbestos free
Applications
Refractory lining for industrial furnaces for walls, roofs, doors, stacks, etc.
Combustion chamber liners, boilers, and heaters
Back-up insulation for brick and monolithic refractories
Transfer of molten aluminum and other non-ferrous metals
Expansion joint boards
Barrier against flame or heat
Hot face layer for high velocity or abrasive furnace atmosphere
Specifications
Type (Board) | ALT-SF-CGB | ||||
Classification Temperature (°C) | 1050 | 1260 | 1360 | 1450 | |
Operation Temperature (°C) | <850 | ≤1000/1100 | <1200 | ≤1350 | |
Density (Kg/m3) | 240, 280, 320, 400 | ||||
Permanent Linear Shrinkage (%) (after 24 hours, 280Kg/m3) | 900°C | 1100°C | 1200°C | 1350°C | |
≤ -2.5 | ≤ -2 | ≤ -2 | ≤ -2 | ||
Thermal Conductivity (w/m. k) | 600°C | 0.080-0.085 | 0.086-0.087 | 0.083-0.085 | 0.083-0.085 |
800°C | 0.112-0.116 | 0.106-0.108 | 0.101-0.105 | 0.101-0.105 | |
Size (L×W×T) | L (mm) | 400-2400 | |||
W (mm) | 300-1200 | ||||
T (mm) | 10, 100 | ||||
or as customers’ size | |||||
Packing | Carton or Thermal plastic | ||||
Quality Certificate | ISO9001-2008 GBT 3003-2006 MSDS | ||||
Certificate
