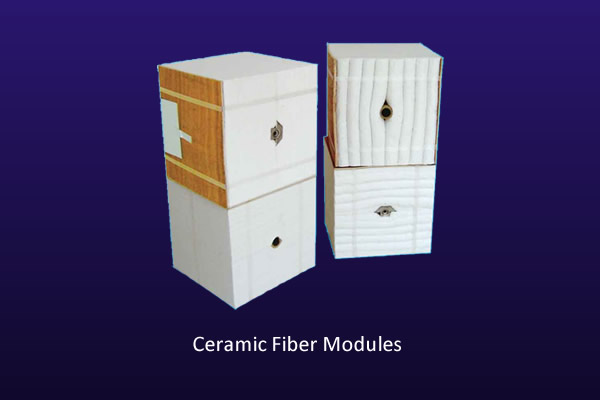

CERAMIC FIBER MODULE
Ceramic Fiber module has excellent refractory, energy saving and insulating effects, and low heat storage. Ceramic fiber module can be directly fixed on the shell of the industrial furnace; installation is fast and easy. Ceramic fiber module improves the refractory and insulating integrity of furnaces and improves furnace construction process. SUPER has 2300F, 2600F, and different sizes of ceramic fiber module in stock. Our ceramic fiber modules are made from high-quality spun fiber blanket, then folded and compressed to certain dimensions.
Features
Fast and easy installation Lower heat storage and fuel costs Very light lining, less steel required Several anchor systems Excellent thermal shock resistance Provide durable service and lifespan Modules combine the insulating advantages and excellert features of ceramic fiber
Applications
Ceramics Low mass kiln cars Door linings Furnace linings
Steel Industry Heat treatment furnaces Ladle pre-heaters and covers Heat treatment furnace Soaking pit covers and seals Heaters and reformer lining
Refining and Petrochemical Ethylene furnace roof and walls Pyrolysis furnace lining Reformer furnace roof and walls Boiler linings
Power Generation Duct lining Heat recovery steam system Boiler insulation Stack linings
Other applications Incineration equipment Burner blocks Induction furnace covers Glass tempering furnace
Specifications
Type(Blown) | ALT-P-CGMK | ||||
Type (Spun) | ALT-S-CGMK | ||||
Classification Temperature (℃) | 1050 | 1260 | 1360 | 1360 | 1450 |
Operation Temperature (℃) | <850 | ≤1000/1120 | <1220 | <1250 | ≤1350 |
Density (Kg/m3) | 180, 200, 220 | ||||
Permanent Linear Shrinkage (%) (after 24 hours, 220Kg/m3) | 900℃ | 1100℃ | 1200℃ | 1200℃ | 1350℃ |
≤-1 | ≤-1 | ≤-1 | ≤-1 | ≤-1 | |
Thermal Conductivity (w/m. k) | 0.09(400℃) 0.176(600℃) | 0.09(400℃) 0.22(1000℃) | 0.132(600℃) 0.22(1000℃) | 0.132(600℃) 0.22(1000℃) | 0.16(600℃) 0.22(1000℃) |
Size (mm) | 300×300×200 or as customers’ size | ||||
Packing | Carton or Woven Bag | ||||
Quality Certificate | ISO9001-2008 GBT 3003-2006 MSDS | ||||

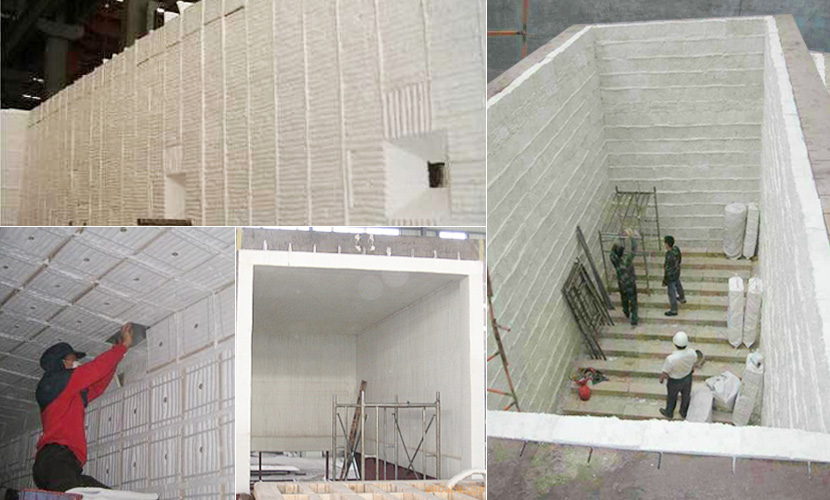

Application References
