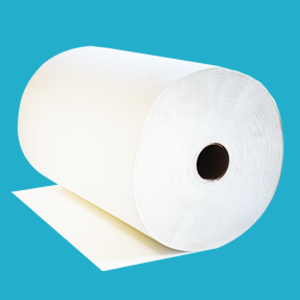

CERAMIC FIBER PAPER
Ceramic fiber paper or HP Ceramic fiber paper consists primarily of high purity alumino-silicate fiber and is made through a fiber washing process. This process controls the unwanted content to a very minimal level within the paper. SUPER's fiber paper has light weight, structural uniformity, and low thermal conductivity, making it a perfect solution for high temperature insulation, chemical corrosion resistance, and thermal shock resistance. Ceramic fiber paper can be used in various refractory and sealing applications and is available in a variety of thicknesses and temperature ratings.
Features
Lightweight Fireproof Very flexible Superior insulating properties No asbestos Contains minimal bonding agent Great white color, easy to cut, wrap or form a shape Excellent temperature stability Low thermal conductivity Low heat storage Excellent resilience Excellent thermal shock resistance Good dielectric strength High fired tensile strength Great flame resistance
Applications
Thermal or/and electrical insulation Combustion chambers liners Hot top lining Backup lining for metal troughs Front linings Parting plane in refractory linings Refractory backup insulation Aerospace heat shields Kiln car deck covering Appliances insulation Automotive exhaust insulation Expansion joints Asbestos paper replacement Investment cast mold wrap insulation One-time consumable insulating applications Applications where low binder content is required
Specifications
Type | ALT-CGZ | ||
Classification Temperature (℃) | 1260 | 1360 | 1450 |
Density (Kg/m3) | 200 | 200 | 220 |
Permanent Linear Shrinkage (%) (after 24 hours) | 1000℃ | 1200℃ | 1300℃ |
≤-3.5 | ≤-3.5 | ≤-3.5 | |
Tensile Strength (Mpa) | 0.65 | 0.7 | 0.75 |
Organic Content (%) | 8 | 8 | 8 |
At 600℃ | 0.09 | 0.088 | 0.087 |
At 800℃ | 0.12 | 0.11 | 0.1 |
L (m) | 10-30 | ||
W (mm) | 610, 1220 | ||
T (mm) | 0.5, 1, 2, 3, 4, 5, 6 | ||
Packing | Carton | ||
Quality Certificate | ISO9001-2008 GBT 3003-2006 MSDS | ||
Certificate
