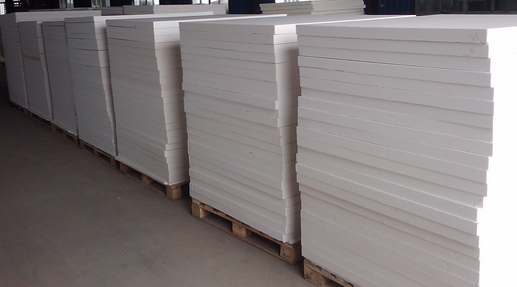

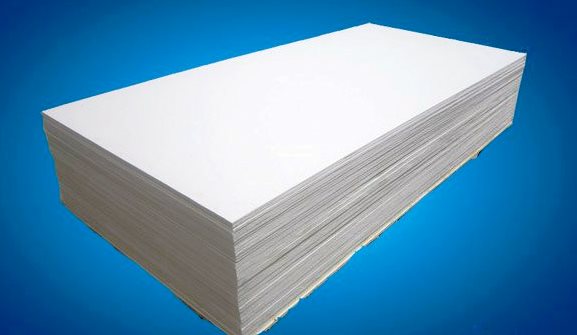

BIO SOLUBLE FIBER BOARD
Bio-soluble fiber board is a body soluble fiber that utilizes a unique spinning technology to create a special fiber with superior thermal and mechanical properties. This fiber is made from a blend of calcium, silica and magnesium and can be exposed to temperatures up to 1200°C. Bio-soluble fiber board does not have any hazard classification due to its low bio-persistence and bio-degradability. Perfect for workers and users to use without the hazardous fiber.
Features
High temperature stability Excellent thermal shock resistance Excellent strength, hardness Exceptional machinability for precise dimensional control Low thermal conductivity Low heat storage Resistant to hot gas erosion Resists most chemical attacks Easy to cut, handle, and install Low sound transmission Light weight Resists penetration by molten aluminum and other non-ferrous metals Asbestos free
Applications
Refractory lining for industrial furnaces for walls, roofs, doors, stacks, etc.
Combustion chamber liners, boilers, and heaters
Back-up insulation for brick and monolithic refractories
Transfer of molten aluminum and other non-ferrous metals
Expansion joint boards
Barrier against flame or heat
Hot face layer for high velocity or abrasive furnace atmosphere
Specifications
Type | ALT-SF-STB | ||
Classification Temperature (℃) | 1050 | 1260 | |
Operation Temperature (℃) | <750 | ≤1100 | |
Density (Kg/m3) | 240, 280, 320, 400 | ||
Permanent Linear Shrinkage (%) (after 24 hours, 280Kg/m3) | 750℃ | 1100℃ | |
≤-3.5 | ≤-3.5 | ||
Thermal Conductivity (w/m. k) | 600℃ | 0.080-0.095 | |
800℃ | 0.112-0.116 | ||
Loss on ignition (%) (at 900℃x5hr) | ≤6 | ||
Modulus of Rupture (Mpa) (280Kg/m3) | ≥0.3 | ||
Size (mm) | L400-2400×W300-1200×H10/100.0mm or as customers’ size | ||
Packing | Carton or Thermal Plastic Film | ||
Quality Certificate | CE Certificate, ISO9001-2008 | ||
