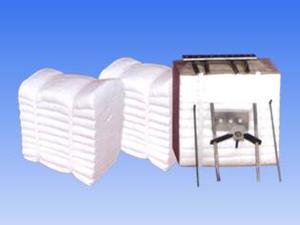

BIO SOLUBLE FIBER MODULE
Bio-soluble fiber module is a body soluble fiber that utilizes a unique spinning technology to create a special fiber with superior thermal and mechanical properties. This fiber is made from a blend of calcium, silica and magnesium and can be exposed to temperatures up to 1200°C. Bio-soluble fiber blanket does not have any hazard classification due to its low bio-persistence and bio-degradability. Perfect for workers and users to use without the hazardous fiber.
Features
Fast and easy installation Lower heat storage and fuel costs Very light lining, less steel required Several anchor systems Excellent thermal shock resistance Provide durable service and lifespan Modules combine the insulating advantages and excellert features of ceramic fiber
Applications
Ceramics Low mass kiln cars Door linings Furnace linings
Steel Industry Heat treatment furnaces Ladle pre-heaters and covers Heat treatment furnace Soaking pit covers and seals Heaters and reformer lining
Refining and Petrochemical Ethylene furnace roof and walls Pyrolysis furnace lining Reformer furnace roof and walls Boiler linings
Power Generation Duct lining Heat recovery steam system Boiler insulation Stack linings
Other applications Incineration equipment Burner blocks Induction furnace covers Glass tempering furnace
Specifications
Type (Spun) | ALT-S-CGMK | |
Classification Temperature (℃) | 1050 | 1260 |
Operation Temperature (℃) | <750 | ≤1100 |
Density (Kg/m3) | 200, 220 | |
Permanent Linear Shrinkage (%) (after 24 hours) | 750℃ | 1100℃ |
≤-1 | ≤-1 | |
Thermal Conductivity (w/m. k) | 0.09 (400℃) 0.176 (600℃) | 0.09 (400℃) 0.22 (1000℃) |
Size (mm) | 300×300×200 or as customers’ size | |
Packing | Carton or Woven Bag | |
Quality Certificate | CE Certificate, ISO9001-2008 | |

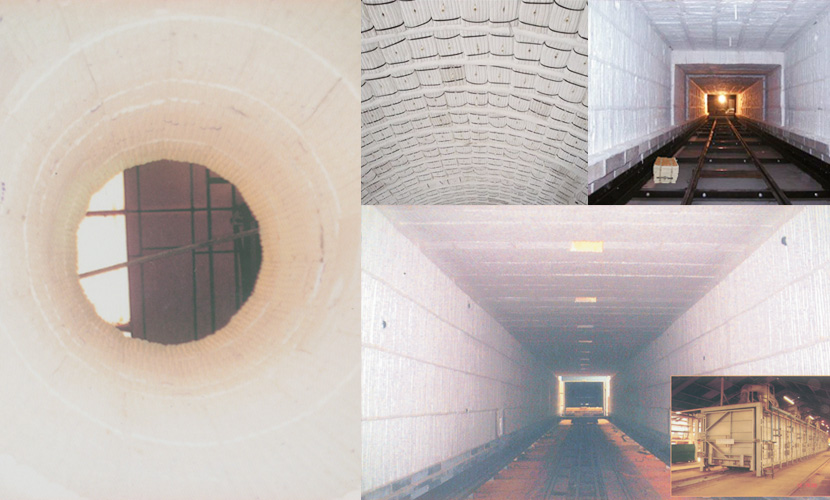

Application References
