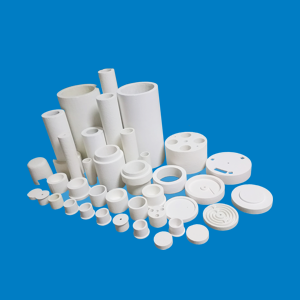

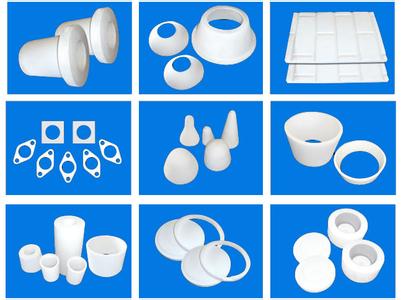

BIO SOLUBLE FIBER VACUUM SHAPED PRODUCT
Bio-soluble fiber vacuum shaped product is a body soluble fiber that utilizes a unique spinning technology to create a special fiber with superior thermal and mechanical properties. This fiber is made from a blend of calcium, silica and magnesium and can be exposed to temperatures up to 1200°C. Bio-soluble fiber vacuum shaped product does not have any hazard classification due to its low bio-persistence and bio-degradability. Perfect for workers and users to use without the hazardous fiber.
Features
Accurate dimension Excellent chemical stability and thermal shock resistance Excellent resistance to abrasion and anti-stripping Excellent resistance to wetting by molten metal Excellent sound absorption Excellent wind corrosion resistance, long service life Good fire-resistance,high thermal insulation High strength and excellent machinability Low heat storage, low thermal conductivity Nonbrittle material, good elasticity
Applications
High temperature fire insulation High temperature gasket High temperature pipe walllining Industrial furnace burner brick Industrial furnace wall lining, door and roof seals Industrial kilns observation hole, insert hole of thermometer Molten metal delivery system Shipping, aviation, precision industrial equipment Special shaped ceramic fiber insulating shapes application Sump andlaunder for aluminum product industry Thermal insulating material of heat and electrical equipment
Specifications
Type | ALT-SF-STYXJ | ||
Classification Temperature (℃) | 1050 | 1260 | |
Operation Temperature (℃) | <750 | ≤1100 | |
Density (Kg/m3) | 240, 280, 320, 400 | ||
Permanent Linear Shrinkage (%) (after 24 hours, 280Kg/m3) | 750℃ | 1100℃ | |
≤-3.5 | ≤-3.5 | ||
Thermal Conductivity (w/m. k) | 600℃ | 0.080-0.095 | |
800℃ | 0.112-0.116 | ||
Loss on ignition (%) (at 900℃x5hr) | ≤6 | ||
Modulus of Rupture (Mpa) (280Kg/m3) | ≥0.3 | ||
Size (mm) | Make as customers’ drawings | ||
Packing | Carton | ||
Quality Certificate | CE Certificate, ISO9001-2008 | ||
