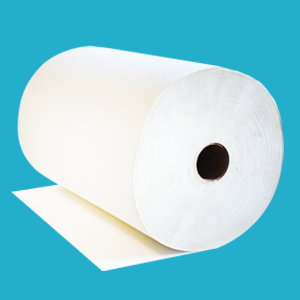

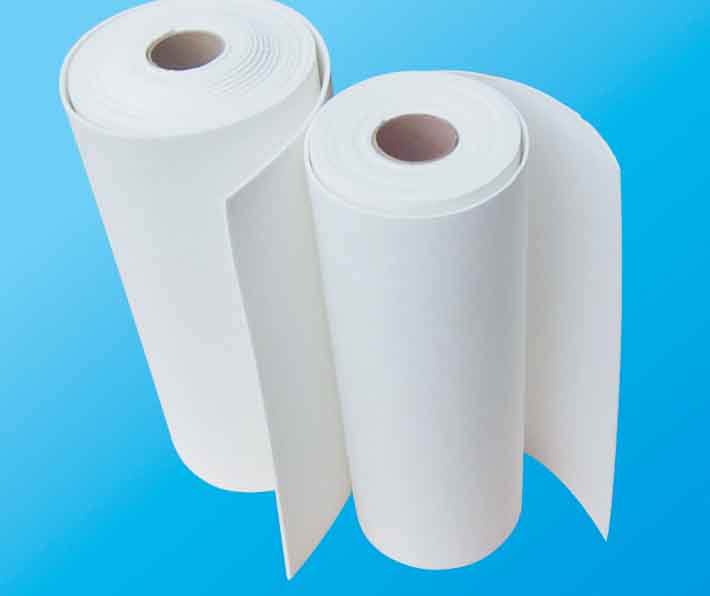

BIO SOLUBLE FIBER PAPER
Bio-soluble fiber paper is a body soluble fiber that utilizes a unique spinning technology to create a special fiber with superior thermal and mechanical properties. This fiber is made from a blend of calcium, silica and magnesium and can be exposed to temperatures up to 1200°C. Bio-soluble fiber paper does not have any hazard classification due to its low bio-persistence and bio-degradability. Perfect for workers and users to use without the hazardous fiber.
Features
Lightweight Fireproof Very flexible Superior insulating properties No asbestos Contains minimal bonding agent Great white color, easy to cut, wrap or form a shape Excellent temperature stability Low thermal conductivity Low heat storage Excellent resilience Excellent thermal shock resistance Good dielectric strength High fired tensile strength Great flame resistance
Applications
Thermal or/and electrical insulation Combustion chambers liners Hot top lining Backup lining for metal troughs Front linings Parting plane in refractory linings Refractory backup insulation Aerospace heat shields Kiln car deck covering Appliances insulation Automotive exhaust insulation Expansion joints Asbestos paper replacement Investment cast mold wrap insulation One-time consumable insulating applications Applications where low binder content is required
Specifications
Type | ALT-STZ | ||
Classification Temperature (℃) | 1050 | 1260 | Inorganic paper 1260 |
Density (Kg/m3) | 200 | 200 | 200 |
Permanent Linear Shrinkage (%) (after 24 hours) | 750℃ | 1100℃ | 1000℃ |
≤-3.5 | ≤-3.5 | ≤-2 | |
Organic Content (%) | 7 | 7 | - |
At 600℃ | 0.09 | 0.088 | 0.09 |
At 800℃ | 0.12 | 0.11 | 0.12 |
Size (L×W×T) | L (m) | 10-30 | |
W (mm) | 610, 1220 | ||
T (mm) | 0.5, 1, 2, 3, 4, 5, 6 | ||

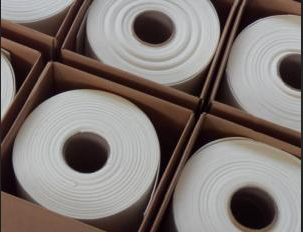

Packing | Carton | ||
Quality Certificate | CE Certificate, ISO9001-2008 | ||
